Mesh Size 2 Inches Welding Speed 120rows/Min Electric Welded Wire Mesh Machine

  • Mesh Size 2 Inches Welding Speed 120rows/Min Electric Welded Wire Mesh Machine
  • Mesh Size 2 Inches Welding Speed 120rows/Min Electric Welded Wire Mesh Machine
  • Mesh Size 2 Inches Welding Speed 120rows/Min Electric Welded Wire Mesh Machine
Lieu d'origine Chine
Nom de marque DIXUN
Certification CE & ISO 9001:2015
Numéro de modèle DX-DHW-8
Quantité de commande min un ensemble
Détails d'emballage Les pièces de rechange et l'armoire de commande seront chargées dans une caisse en bois. La mach
Délai de livraison 30 jours ouvrables
Capacité d'approvisionnement 15 séries par mois
Détails sur le produit
Nom du produit Machines de treillis métalliques soudés électriques Garantie 2 ans
Moteur principal 5,5 kW Vitesse de soudage 60 à 120 fois par minute
Couleur Peut être personnalisé Poids 3300 kg
Largeur de maille - Je vous en prie.1.2-2,5 m Tension 220V / 380V / 415V / 440V
Système de contrôle Contrôlé par le silicium Type de maillage Maillons à rouleaux
Mettre en évidence

2 inch mesh welding machine

,

120 rows per minute wire mesh machine

,

electric welded mesh machine with warranty
Laisser un message
Description de produit

Mesh size 2 inches Welding Speed 120rows/Min Electric Welded Wire Mesh Machine





Electric Welded Wire Mesh Machine Introduction



The Welded Wire Mesh Machine is an automated system designed for producing barbed shaft mesh and reinforced protective metal mesh. Controlled by a PLC intelligent system, it performs automatic wire feeding, precise positioning, and fast welding. The welded joints are firm and uniform, ensuring high productivity and stable performance — ideal for large-scale industrial production.



Electric Welded Wire Mesh Machine Features



1. Automatic Wire Feeding. Both longitudinal and cross wires are fed automatically from wire coils for stable production.

2. Adjustable 8-level transformer system for different wire diameters and welding strength.

3. Equipped with Delix breakers, Deltai inverters, and Schneder electric parts for reliable performance.

4. Both line wire and cross wires are fully automatic wire feeding through the wire reel.
5. The mesh roll length can be set by the control panel.
6. We can set the output on the counter, and the machine will stop automatically after production.
7. We can easily adjust the welding current when we need to weld different wire diameters.
8. Machinery can be equipped with flat mesh system if you need to produce flat wire mesh.
9. You can produce two rolled wire mesh at the same time, just adjust the cutter position.



Welded Wire Mesh Machine Advantages


1. High Automation: PLC control for automatic wire feeding, welding, and cutting in one process.
2. Strong Welding: Equipped with pneumatic or servo welding system for consistent and firm welds.
3. Easy Operation: Touchscreen interface allows flexible adjustment of welding parameters.
4. Energy Efficient: Low power consumption with high output, reducing labor costs.
5. Wide Applications: Suitable for producing protection mesh, isolation mesh, and reinforcement mesh.



Welded Wire Mesh Machine Technical Parameters



Item DX-DHW-1 DX-DHW-2 DX-DHW-3 DX-DHW-4
Number of Electrodes 97 121 65 81
Mesh Size 1/2 inch 1/2 inch 3/4 inch 3/4 inch
Max.Mesh Width 4.0ft 5.0ft 4.0ft 5.0ft
Wire Diameter 0.5-1.2mm 0.5-1.2mm 0.5-1.2mm 0.5-1.2mm
Welding Transformer 60KVA*4 60KVA*4 65KVA*4 65KVA*5
Welding Speed 100-130 times/min 100-130 times/min 100-130 times/min 100-130 times/min
Main Motor 3.0KW 3.0KW 3.0KW 3.0KW
Control System

Frequency Control



Item DX-DHW-5 DX-DHW-6 DX-DHW-7 DX-DHW-8
Number of Electrodes 49 61 73 84
Mesh Size 1/2/3/4 inch 1/2/3/4 inch 1/2/3/4 inch 1/2/3/4 inch
Max.Mesh Width 4.0ft 5.0ft 6.0ft 7.0ft
Wire Diameter 1.2-2.8mm 1.2-2.8mm 1.2-2.8mm 1.2-2.8mm
Welding Transformer 85KVA*4 85KVA*5 85KVA*6 85KVA*7
Welding Speed 100-120 times/min 100-120 times/min 100-130 times/min 100-130 times/min
Main Motor 4.0KW 4.0KW 4.0KW 4.0KW
Control System Frequency Control



Electric Welded Wire Mesh Application



The welded wire mesh is widely used in construction,industry and agriculture.For example Crack prevention of roads or building walls,filter production,machine safety cover, animal cage,Office or kitchen storage rack,etc



Why Choose Us


1. Small MOQ,fast delivery.
2. Sales team is professional and enthusiastic.
3. Strong after-sales team,professinal technical support and perfect after-sales service.
4. Customizing machines on demand is our feature.
5. Complete product range,one-stop procurement,saving time.
6. Company own factory for better quality control.

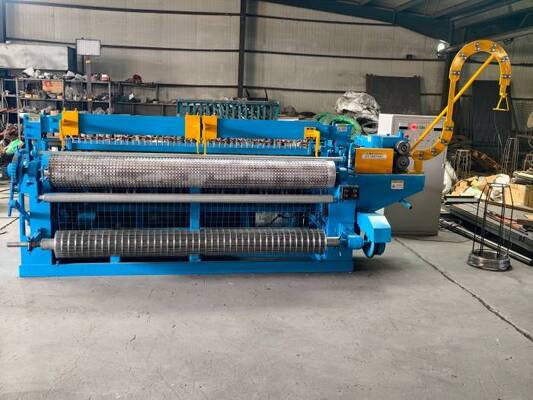

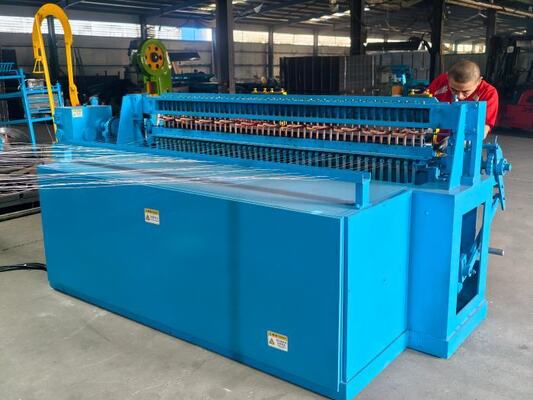

Photos of Electric Welded Wire Mesh Machine



Mesh Size 2 Inches Welding Speed 120rows/Min Electric Welded Wire Mesh Machine 0

Mesh Size 2 Inches Welding Speed 120rows/Min Electric Welded Wire Mesh Machine 1

Mesh Size 2 Inches Welding Speed 120rows/Min Electric Welded Wire Mesh Machine 2

Mesh Size 2 Inches Welding Speed 120rows/Min Electric Welded Wire Mesh Machine 3
